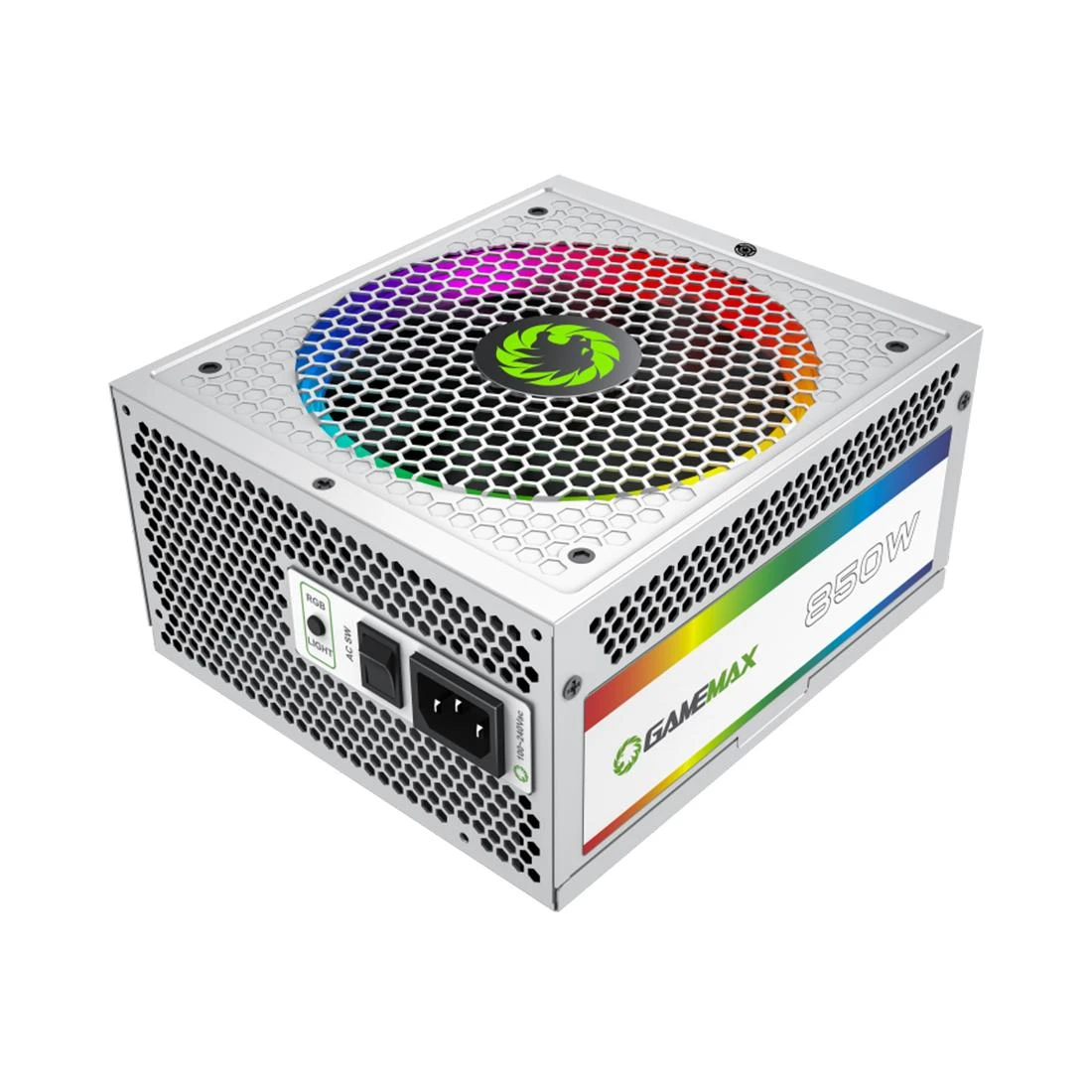

БП 850W Gamemax RGB-850, 14CM FAN, RGB LED, полностью модульный, Cертификация 80PlusGold, ATX, Кабели: 20+4P, 2*4+4P, 3*IDE, 8*SATA, 2*PCI-E6+2P, 1*FDD (Gamemax RGB-850)
Gamemax RGB series power supply offers “Value and Performance” scheme. The most suitable cost/performance ratio is the best choice for system builder. 12V CPU power and modern PCIe 6+2pin connectors are ready for high-end gaming system. Fully electrical protection and official safety are also the quality promise by Gamemax.
RGB Modes operation instructions:
1. with memory function, turn on power supply again; the initial state is as same as the state of power off;:
2. Press RGB controller switch successively, the lights change to be white, blue, yellow, red, green, blue green, purple, breathing lights and color mix mode in turn;:
3. Breathing lights mode: make the lights bright gradually in two seconds, make the lights dim gradually in two seconds, play cycle from white color to purple color. :
4. Color mix mode: the lights change from white to purple color in turn and keep 0.5S at peak of each color; it takes 4S between the two colors:
5. In any mode, press the RGB controller switch for three seconds, the lights go out.:
| RGB-850 Cable Configuration | |
| 20+4Pin | 600mm |
| 12V4+4Pin | 600mm |
| PCI-E(6+2)Pin | 500mm |
| PCI-E(6+2)PIN | 500mm |
| SATA+SATA+SATA | 500mm/650mm/800mm |
| SATA+SATA+SATA | 500mm/650mm/800mm |
| IDE+SATA+SATA | 500mm/650mm/800mm |
| IDE+IDE+FDD | 500mm/650mm/800mm |
- · Compatible with ATX12V 2.3.
- · High-end SECC black coating casing.
- · High-Efficiency – 90+ Certified.
- · Low Noise 14cm RGB Fan with intelligent fan speed control.
- · Honeycomb ventilation design for optimal heat dissipation.
- · High-end VGA card support with modern PCIe 6+2pin connector.
- · Powerful single +12V rails offer stable DC output and support high-end graphic card and PCsystem.
- · Long cable length at least 500mm supports high-end case with “Bottom”PSU position.
- · Active Power Factor rate up to 0.9.
- · Green power design that meets ErP requirements.
- · Low ripple noise.
- · OPP/OVP/UVP/SCP/OCP electrical protection included.
- · Safety / EMI Approvals: CE, FCC, GOST, CB , EAC .
- · RGB Ring Fan on top, RGB Gamemax logo on the side surface, the lights iscoming from the top and side
